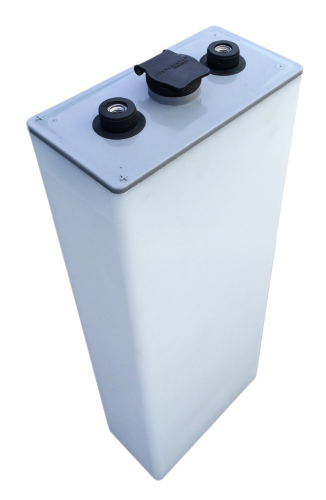

SOPzS Standby Power
Eternity Technologies SOPzS Standby Power Products have been specifically designed to deliver high quality and high energy density into critical applications that require regular cycling combined with a high tolerance of temperature and grid reliability.
Features
- High energy density
- Robust tubular positive electrode design
- Engineered to deliver 2000 cycles at 60% DOD at 20°C
- Design life - 18 years float life
- EUROBAT design life: Long Life >12 years
- Fully recyclable with low CO 2 footprint
Application
- Local Telecoms
- Emergency Lighting
- Mini Grids
- Power Generation devices
- Wind/ Solar Generation
- Residential Installations
- Utilities
Weight, Capacity and Dimension Charts
| DIN Cell Type | C240 * | C120 * | C100 * | C20 ** | C10 ** | kWh (120hrs) | Length (mm) | Width (mm) | H1 (mm) | H2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 SOPzS - ET 220 | 227 | 220 | 213 | 168 | 148 | 0.44 | 198 | 65 | 406 | 433 | 12 |
| 3 SOPzS - ET 315 | 328 | 315 | 307 | 252 | 221 | 0.63 | 198 | 83 | 406 | 433 | 16 |
| 3 SOPzS - ET 405 | 421 | 405 | 387 | 307 | 276 | 0.81 | 198 | 83 | 480 | 507 | 19 |
| 4 SOPzS - ET 510 | 530 | 510 | 497 | 410 | 368 | 1.02 | 198 | 101 | 480 | 507 | 24 |
| 5 SOPzS - ET 650 | 676 | 650 | 632 | 512 | 460 | 1.30 | 198 | 119 | 480 | 507 | 27 |
| 4 SOPzS - ET 750 | 780 | 750 | 722 | 589 | 529 | 1.50 | 198 | 101 | 615 | 642 | 31 |
| 5 SOPzS - ET 900 | 936 | 900 | 880 | 736 | 661 | 1.80 | 198 | 119 | 615 | 642 | 38 |
| 6 SOPzS - ET 1100 | 1144 | 1100 | 1076 | 883 | 794 | 2.20 | 198 | 137 | 615 | 642 | 44 |
| 7 SOPzS - ET 1300 | 1352 | 1300 | 1288 | 1030 | 926 | 2.60 | 198 | 173 | 615 | 642 | 53 |
| 8 SOPzS - ET 1560 | 1560 | 1500 | 1481 | 1178 | 1058 | 3.00 | 198 | 191 | 615 | 642 | 57 |
