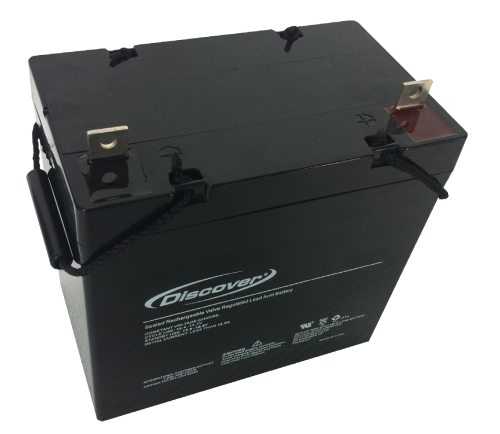

AGM Range A03
Eternity Technologies offers powerful batteries for cyclic applications. The AGM Range A03 of Bloc Batteries is designed for universal cyclic applications.
Eternity Technologies is an exclusive contract partner for products of Discover Energy Corp.
Features
- Maintenance-free bloc batteries in Gel technology (no topping-up during life-time)
- > 330 cycles (DIN EN 60254-1) (IEC 254-1)
- Capacity: 6–105 Ah (C5)
- Valve-regulated, lead-acid battery
- Recyclable
- Long cycle life
Application
- Electric wheelchairs
- Golf carts
- Electric working platforms
- Motive power applications, e. g. pallet trucks
- Cleaning machines
- Caravans and boats
- Solar
Weight, Capacity and Dimension Charts
| ET Ref | DEC Ref | Voltage | Capacity Ah C5 | Capacity Ah C20 | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|---|---|
| A03 12 006 | D 1272D | 12 | 6 | 7 | 151 | 65 | 100 | 2.3 | F1 |
| A03 12 010 | D 12120D | 12 | 10 | 12 | 151 | 98 | 101 | 3.5 | F1 |
| A03 12 015 | D 12180D | 12 | 15 | 18 | 181 | 77 | 167 | 5.3 | F-M5 |
| A03 12 021 | D 12260D | 12 | 21 | 24 | 166 | 175 | 125 | 7.8 | F-M5 |
| A03 12 029 | D 12350D | 12 | 29 | 35 | 195 | 130 | 180 | 10.8 | F-M6 |
| A03 12 039 | D 12450D | 12 | 39 | 48 | 197 | 165 | 170 | 13.7 | F-M6 |
| A03 12 048 | D 12600D | 12 | 48 | 60 | 229 | 138 | 227 | 16.5 | F-M6 |
| A03 12 064 | D 12750D | 12 | 64 | 78 | 260 | 166 | 235 | 22.0 | F-M6 |
| A03 12 082 | D 121000BD | 12 | 82 | 100 | 306 | 169 | 227 | 27.5 | F-M8 |
| A03 12 087 | D 121000D | 12 | 87 | 105 | 328 | 171 | 220 | 31.0 | F-M6 |
| A03 12 105 | D 121200D | 12 | 105 | 128 | 328 | 171 | 220 | 32.0 | F-M8 |
