Home / Eternity

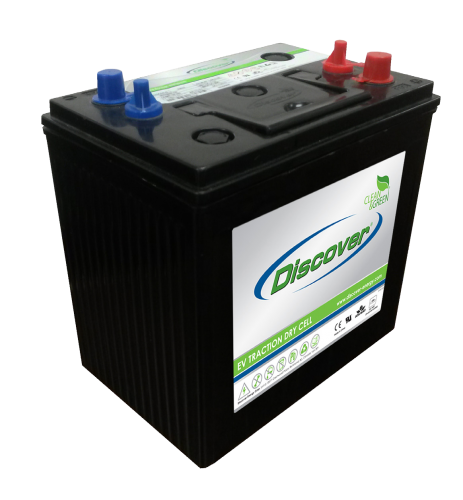

AGM Range A05
Eternity Technologies offers powerful batteries for cyclic applications. The AGM range A05 of Bloc Batteries is designed for universal cyclic applications.
Eternity Technologies is an exclusive contract partner for products of Discover Energy Corp.
Features
- Maintenance-free bloc batteries in AGM technology (no topping up during lifetime)
- Good high current performance
- High-class patented safety valve
- > 500 cycles (DIN EN 60254-1) (IEC 254-1)
- Capacity: 28–335 Ah (C5)
- Valve-regulated lead-acid battery
- Recyclable
- Long cycle life
Application
- Electric wheelchairs
- Golf carts
- Electric working platforms
- Motive power applications, e. g. pallet trucks
- Cleaning machines
- Caravans and boats
- Solar
Weight, Capacity and Dimension Charts
| ET ID | DEC ID | Voltage | Capacity Ah C5 | Capacity Ah C20 | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|---|---|
| A05 06 190 | EV GC6 A-A | 6 | 190 | 220 | 260 | 180 | 274 | 30.0 | AM |
| A05 06 195 | EV 506 A-230-PP | 6 | 195 | 230 | 244 | 189 | 275 | 30.0 | F-M8 |
| A05 06 285 | EV 305 A-A-PP | 6 | 285 | 330 | 293 | 180 | 365 | 49.0 | AM |
| A05 06 335 | EV L16 A-A-PP | 6 | 335 | 390 | 294 | 178 | 385 | 55.0 | F-M10 |
| A05 08 130 | EV GC8 A-A | 8 | 130 | 160 | 260 | 180 | 286 | 30.0 | AM |
| A05 08 156 | EV GT8 A-A | 8 | 156 | 185 | 260 | 180 | 300 | 37.0 | F-M8 |
| A05 12 028 | EV U1 A-A | 12 | 28 | 33 | 195 | 130 | 180 | 11.0 | F-M6 |
| A05 12 040 | EV 512 A-45 | 12 | 40 | 50 | 197 | 165 | 170 | 14.0 | F-M6 |
| A05 12 050 | EV 22 A-A | 12 | 50 | 58 | 229 | 138 | 224 | 18.0 | F-M6 |
| A05 12 055 | EV 34 A-A | 12 | 55 | 65 | 258 | 167 | 198 | 20.0 | SAE |
| A05 12 072 | EV 24 A-A | 12 | 72 | 85 | 258 | 172 | 235 | 24.0 | F-M8 |
| A05 12 080 | EV 512 A-90 | 12 | 80 | 87 | 353 | 175 | 190 | 27.0 | SAE |
| A05 12 087 | EV 27 A-A | 12 | 87 | 100 | 308 | 172 | 232 | 29.0 | F-M8 |
| A05 12 096 | EV 31 A-A | 12 | 96 | 115 | 330 | 172 | 236 | 33.0 | AM |
| A05 12 120 | EV 12 A-A | 12 | 120 | 140 | 327 | 180 | 274 | 40.0 | AM |
| A05 12 130 | EV 512 A-150 | 12 | 130 | 150 | 341 | 173 | 288 | 40.0 | F-M8 |
| A05 12 198 | EV 185 A-A | 12 | 198 | 230 | 386 | 180 | 356 | 63.0 | AM |
