AGM Range A04
Eternity Technologies offers powerful batteries for cyclic applications. The AGM range A04 of Bloc batteries is designed for light cyclic applications.
Features
- Maintenance-free bloc batteries in AGM technology (no topping up during lifetime)
- Good high current performance
- High-class patented safety valve
- 350 cycles (DIN EN 60254-1) (IEC 254-1)
- Capacity: 6–190 Ah (C5)
- Valve-regulated lead-acid battery (VRLA)
- Recyclable
- Long cycle life
Application
- Wheelchairs
- Golf carts
- Motive power applications, e. g. pallet trucks
- Cleaning machines
- Caravans and boats
Weight, Capacity and Dimension Charts
| Type | Voltage | Capacity Ah C5 | Capacity Ah C20 | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|---|
| A04 06 160 1 | 6 | 160 | 197 | 306 | 168 | 224 | 30.5 | M6 |
| A04 06 190 | 6 | 190 | 225 | 244 | 190 | 275 | 32.8 | M8 |
| A04 12 006 | 12 | 6 | 7.5 | 151 | 65 | 94 | 2.5 | Faston |
| A04 12 010 | 12 | 10 | 12 | 152 | 99 | 102 | 3.6 | Faston |
| A04 12 014* | 12 | 14 | 17 | 181 | 76 | 167 | 5.5 | M5 |
| A04 12 020 | 12 | 20 | 24 | 181 | 77 | 171 | 6.9 | M5 |
| A04 12 021 | 12 | 21 | 25 | 168 | 178 | 124 | 8.4 | M5 |
| A04 12 026 | 12 | 26 | 31 | 168 | 178 | 121 | 8.9 | M5 |
| A04 12 030 | 12 | 30 | 35 | 196 | 131 | 172 | 10.8 | M6 |
| A04 12 034 | 12 | 34 | 40 | 196 | 130 | 172 | 11.6 | M6 |
| A04 12 037 | 12 | 37 | 46 | 198 | 167 | 167 | 13.5 | M6 |
| A04 12 040 | 12 | 40 | 50 | 198 | 167 | 167 | 13.8 | M6 |

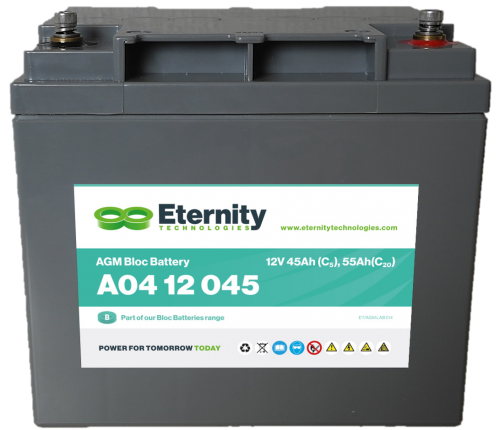

| A04 12 045 | 12 | 45 | 55 | 197 | 165 | 175 | 15.1 | M6 |
| A04 12 056 | 12 | 56 | 67 | 260 | 168 | 189 | 21.5 | M6 |
| A04 12 068 1 | 12 | 68 | 82 | 260 | 168 | 212 | 26.0 | M6 |
| A04 12 080 1 | 12 | 80 | 100 | 307 | 170 | 223 | 30.0 | M6 |
| A04 12 088 1 | 12 | 88 | 107 | 329 | 173 | 219 | 34.4 | M6 |
| A04 12 115 1 | 12 | 115 | 150 | 340 | 173 | 286 | 40.6 | M6 |
