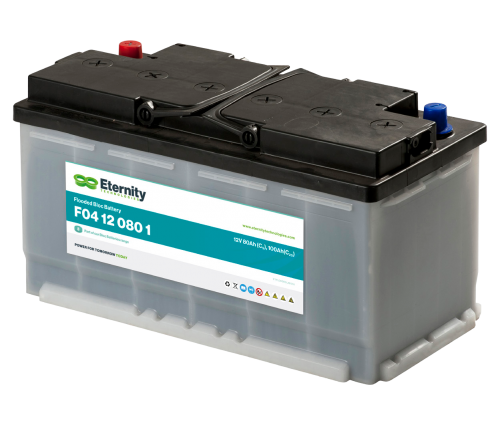

Flooded Range F04
Eternity Technologies offers a wide range of reliable and strong batteries for light traction applicati ons. The low-maintenance range F04 Flooded Batteries is suitable for light to heavy cyclic applications; depending on range.
Features
- Cycles F04: 300 (DIN EN 60254-1) (IEC 254-1)
- Bloc battery with grid/grid technology for light to medium applications
- Capacity: 40–200 (C5)
- Recyclable
Application
- Mobile lifting platforms
- Cleaning machines
- Golf carts
- Motive power applications, e. g. pallet trucks
- Universal for leisure applications
Weight, Capacity and Dimension Charts
| Type | Voltage | Capacity Ah C5 | Capacity Ah C20 | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|---|
| F04 06 200 1 | 6 | 200 | 240 | 244 | 190 | 275 | 31.5 | A |
| F04 12 040 | 12 | 40 | 50 | 211 | 175 | 190 | 14.0 | A |
| F04 12 050 | 12 | 50 | 60 | 246 | 175 | 190 | 17.0 | A |
| F04 12 060 | 12 | 60 | 80 | 278 | 175 | 190 | 20.0 | A |
| F04 12 080 1 | 12 | 80 | 100 | 353 | 175 | 190 | 25.0 | A |
| F04 12 080 2 | 12 | 80 | 105 | 348 | 175 | 239 | 30.0 | A |
| F04 12 110 | 12 | 110 | 125 | 349 | 175 | 289 | 33.0 | A |
| F04 12 105 | 12 | 105 | 135 | 513 | 189 | 223 | 40.0 | A |
| F04 12 135 | 12 | 135 | 180 | 513 | 223 | 223 | 49.0 | A |
| F04 12 200 | 12 | 200 | 230 | 518 | 276 | 242 | 60.0 | A |
Do you have any query? Call +(91)-9822775764. Or Request a Quote
