Home / Eternity

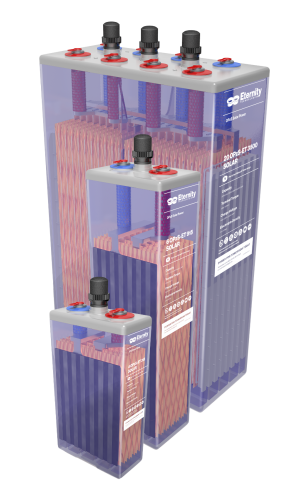

OPzS StandBy Power
Bolted 198mm wide
Eternity Technologies vented lead-acid batteries for the standby power market. Optimised design results in a low maintenance, reliable energy storage solution for critical and unstable applications.
Features
- High energy density
- Robust tubular positive electrode design, compliant with DIN 40736
- Minimal maintenance due to low antimony alloy and large electrolyte volume
- Operating temperature 15°C to 35°C
- Low self discharge rate of approximately 3% per month at 20°C
- EUROBAT design life: Long Life > 12 years
- Fully recyclable with low CO 2 footprint
Application
- High energy density
- Robust tubular positive electrode design, compliant with DIN 40736
- Minimal maintenance due to low antimony alloy and large electrolyte volume
- Operating temperature -20°C to +55°C
- Low self discharge rate of approximately 3% per month at 20°C
Weight, Capacity and Dimension Charts
| Cell Type | Plate (Ah) | Length (mm) | Width (mm) | Height over lid (mm) | Height over pillar (mm) | Dry weight (kg) | Filled weight (kg) | Capacity (Ah) C10 - 1.8V Cell at 20°C |
|---|---|---|---|---|---|---|---|---|
| 4 OPzS-ET 200 | 50 | 105 | 208 | 367 | 392 | 12.9 | 17.7 | 225 |
| 5 OPzS-ET 250 | 50 | 126 | 208 | 367 | 392 | 15.5 | 21.3 | 280 |
| 6 OPzS-ET 300 | 50 | 147 | 208 | 367 | 392 | 18.3 | 25.2 | 335 |
| 5 OPzS-ET 350 | 70 | 126 | 208 | 483.5 | 509 | 20.0 | 27.4 | 400 |
| 6 OPzS-ET 420 | 70 | 147 | 208 | 483.5 | 509 | 23.4 | 32.2 | 480 |
| 7 OPzS-ET 490 | 70 | 168 | 208 | 483.5 | 509 | 26.7 | 36.9 | 560 |
| 6 OPzS-ET 600 | 100 | 147 | 208 | 656 | 681 | 32.1 | 41.1 | 690 |
| 8 OPzS-ET 800 | 100 | 212 | 193 | 657 | 682 | 45.0 | 60.4 | 920 |
| 10 OPzS-ET 1000 | 100 | 212 | 235 | 659 | 684 | 54.5 | 73.6 | 1150 |
| 12 OPzS-ET 1200 | 100 | 212 | 277 | 658 | 683 | 63.8 | 86.7 | 1380 |
| 12 OPzS-ET 1500 | 125 | 212 | 277 | 809 | 834 | 77.1 | 105.6 | 1650 |
| 16 OPzS-ET 2000 | 125 | 215 | 400 | 784 | 809 | 103.8 | 146.2 | 2200 |
| 20 OPzS-ET 2500 | 125 | 214 | 489 | 782 | 807 | 127.5 | 178.8 | 2750 |
| 22 OPzS-ET 2750 | 125 | 214 | 578 | 784 | 809 | 138.4 | 200.8 | 3025 |
| 24 OPzS-ET 3000 | 125 | 214 | 578 | 784 | 809 | 147.1 | 209.1 | 3300 |
