Eternity Products
Gel Range G04
Eternity Technologies offers powerful batteries for cyclic applications. The Gel range G04 of Bloc Batteries is designed for universal cyclic applications.
Features
- Maintenance-free bloc batteries in Gel technology (no topping up during lifetime)
- Good high current performance for extreme operating conditions
- High-class patented safety valve
- 450 cycles (DIN EN 60254-1) (IEC 254-1)
- Capacity: 14–255 Ah (C5)
- Valve-regulated lead-acid battery
- Recyclable
- Long cycle life
Application
- Electric vehicles
- Wheelchairs
- Cleaning machines
- Electric working platforms
- Universal for multiple cyclic applications
Weight, Capacity and Dimension Charts
| Type | Voltage | Capacity Ah C5 | Capacity Ah C20 | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|---|
| G04 06 180 | 6 | 180 | 220 | 244 | 188 | 275 | 33.4 | M8 |
| G04 06 240 1 | 6 | 240 | 270 | 295 | 178 | 350 | 41.5 | A |
| G04 06 255 | 6 | 255 | 300 | 295 | 178 | 350 | 42.0 | M8 |
| G04 12 014 | 12 | 14 | 17 | 181 | 76 | 167 | 5.5 | M5 |
| G04 12 020 | 12 | 20 | 25 | 168 | 178 | 124 | 9.2 | M5 |
| G04 12 025 | 12 | 25 | 30 | 195 | 130 | 172 | 10.5 | M6 |
| G04 12 033 | 12 | 33 | 39 | 198 | 167 | 167 | 13.5 | M6 |
| G04 12 043 | 12 | 43 | 55 | 229 | 138 | 223 | 17.7 | M6 |
| G04 12 045 | 12 | 45 | 54 | 260 | 168 | 189 | 17.5 | M6 |

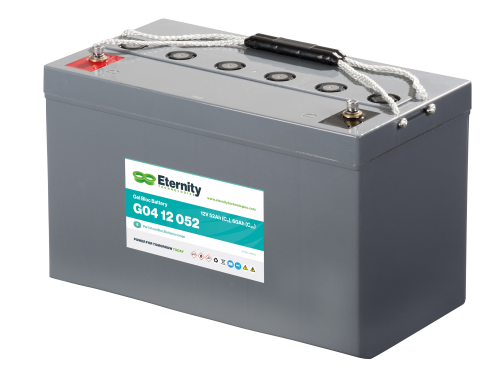

| G04 12 052 | 12 | 52 | 60 | 260 | 168 | 189 | 20.3 | M6 |
| G04 12 063 | 12 | 63 | 74 | 263 | 168 | 206 | 24.0 | M6 |
| G04 12 066 2 | 12 | 66 | 80 | 254 | 168 | 216 | 24.0 | M6 |
| G04 12 066 3 | 12 | 66 | 80 | 254 | 177 | 206 | 24.0 | M6 |
| G04 12 115* | 12 | 115 | 135 | 340 | 173 | 284 | 38.0 | M6 |
| G04 12 130 | 12 | 130 | 150 | 340 | 173 | 286 | 44.1 | M6 |
