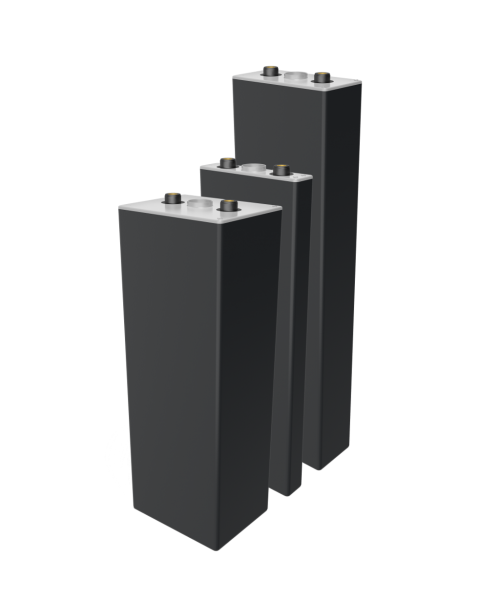

DIN Cells (Standard)
Bolted 198mm wide
Eternity Technologies have brought together the latest manufacturing processes and modern design criteria to deliver the Eternity Technologies DIN range of Cells designed to meet the ever changing demands of the Global Motive Power market.
Application
- Forklift Trucks
- Electric Vehicles
- Cleaning Machines
- Lifting platforms
- Road vehicles
- Road vehicles
- Other electric vehicles with high energy/ deep cycle requirements
Features
- Lead-acid vented batteries with liquid electrolyte
- Capacity for DIN product range: 100 – 1550Ah
- Non-woven tubular sleeving helps to increase productivity while maximising performance
- Modern tubular design maximises the active lead material and delivers optimised energy
- The latest separator design delivers increased acid volumes and increases acid circulation
- Fully insulated terminals
- Suitable for all applications
| Dimensions | H1 = 569 mm H2 = 599 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 250 | 250 | 14.8 | 47 |
| 3 PzS-ET 375 | 375 | 20.4 | 65 |
| 4 PzS-ET 500 | 500 | 26.4 | 83 |
| 5 PzS-ET 625 | 625 | 32.7 | 101 |
| 6 PzS-ET 750 | 750 | 39.1 | 119 |
| 7 PzS-ET 875 | 875 | 43.6 | 137 |
| 8 PzS-ET 1000 | 1000 | 51.4 | 155 |
| 9 PzS-ET 1125 | 1125 | 57.1 | 173 |
| 10 PzS-ET 1250 | 1250 | 63.3 | 191 |
| Dimensions | H1 = 683.5 mm H2 = 713.5 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 280 | 280 | 16.0 | 47 |
| 3 PzS-ET 420 | 420 | 23.0 | 65 |
| 4 PzS-ET 560 | 560 | 30.1 | 83 |
| 5 PzS-ET 700 | 700 | 37.0 | 101 |
| 6 PzS-ET 840 | 840 | 44.7 | 119 |
| 7 PzS-ET 980 | 980 | 50.7 | 137 |
| 8 PzS-ET 1120 | 1120 | 58.1 | 155 |
| 9 PzS-ET 1260 | 1260 | 64.7 | 173 |
| 10 PzS-ET 1400 | 1400 | 71.9 | 191 |
| Dimensions | H1 = 713.5 mm H2 = 743.5 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 310 | 310 | 17.5 | 47 |
| 3 PzS-ET 465 | 465 | 25.5 | 65 |
| 4 PzS-ET 620 | 620 | 33.8 | 83 |
| 5 PzS-ET 775 | 775 | 39.6 | 101 |
| 6 PzS-ET 930 | 930 | 48.0 | 119 |
| 7 PzS-ET 1085 | 1085 | 55.6 | 137 |
| 8 PzS-ET 1240 | 1240 | 63.0 | 155 |
| 9 PzS-ET 1395 | 1395 | 70.2 | 173 |
| 10 PzS-ET 1550 | 1550 | 78.3 | 191 |
| Dimensions | H1 = 463.5 mm H2 = 493.5 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 180 | 180 | 11.1 | 47 |
| 3 PzS-ET 270 | 270 | 15.9 | 65 |
| 4 PzS-ET 360 | 360 | 20.5 | 83 |
| 5 PzS-ET 450 | 450 | 25.6 | 101 |
| 6 PzS-ET 540 | 540 | 30.1 | 119 |
| 7 PzS-ET 630 | 630 | 34.5 | 137 |
| 8 PzS-ET 720 | 720 | 39.0 | 155 |
| 9 PzS-ET 810 | 810 | 43.8 | 173 |
| 10 PzS-ET 900 | 900 | 48.4 | 191 |
| Dimensions | H1 = 511.5 mm H2 = 541.5 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 210 | 210 | 12.8 | 47 |
| 3 PzS-ET 315 | 315 | 18.1 | 65 |
| 4 PzS-ET 420 | 420 | 23.5 | 83 |
| 5 PzS-ET 525 | 525 | 28.5 | 101 |
| 6 PzS-ET 630 | 630 | 34.1 | 119 |
| 7 PzS-ET 735 | 735 | 39.4 | 137 |
| 8 PzS-ET 840 | 840 | 44.8 | 155 |
| 9 PzS-ET 945 | 945 | 49.8 | 173 |
| 10 PzS-ET 1050 | 1050 | 55.1 | 191 |
| Dimensions | H1 = 542.5 mm H2 = 572.5 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 230 | 230 | 13.3 | 47 |
| 3 PzS-ET 345 | 345 | 18.7 | 65 |
| 4 PzS-ET 460 | 460 | 25.1 | 83 |
| 5 PzS-ET 575 | 575 | 30.2 | 101 |
| 6 PzS-ET 690 | 690 | 35.4 | 119 |
| 7 PzS-ET 805 | 805 | 41.3 | 137 |
| 8 PzS-ET 920 | 920 | 47.0 | 155 |
| 9 PzS-ET 1035 | 1035 | 52.3 | 173 |
| 10 PzS-ET 1150 | 1150 | 58.2 | 191 |
| Dimensions | H1 = 569 mm H2 = 599 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 250 | 250 | 14.8 | 47 |
| 3 PzS-ET 375 | 375 | 20.4 | 65 |
| 4 PzS-ET 500 | 500 | 26.4 | 83 |
| 5 PzS-ET 625 | 625 | 32.7 | 101 |
| 6 PzS-ET 750 | 750 | 39.1 | 119 |
| 7 PzS-ET 875 | 875 | 43.6 | 137 |
| 8 PzS-ET 1000 | 1000 | 51.4 | 155 |
| 9 PzS-ET 1125 | 1125 | 57.1 | 173 |
| 10 PzS-ET 1250 | 1250 | 63.3 | 191 |
| Dimensions | H1 = 683.5 mm H2 = 713.5 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 280 | 280 | 16.0 | 47 |
| 3 PzS-ET 420 | 420 | 23.0 | 65 |
| 4 PzS-ET 560 | 560 | 30.1 | 83 |
| 5 PzS-ET 700 | 700 | 37.0 | 101 |
| 6 PzS-ET 840 | 840 | 44.7 | 119 |
| 7 PzS-ET 980 | 980 | 50.7 | 137 |
| 8 PzS-ET 1120 | 1120 | 58.1 | 155 |
| 9 PzS-ET 1260 | 1260 | 64.7 | 173 |
| 10 PzS-ET 1400 | 1400 | 71.9 | 191 |
| Dimensions | H1 = 713.5 mm H2 = 743.5 mm |
|---|
| Cell Type | Ah (C5) |
Weight (kg) |
Length (mm) |
|---|---|---|---|
| 2 PzS-ET 310 | 310 | 17.5 | 47 |
| 3 PzS-ET 465 | 465 | 25.5 | 65 |
| 4 PzS-ET 620 | 620 | 33.8 | 83 |
| 5 PzS-ET 775 | 775 | 39.6 | 101 |
| 6 PzS-ET 930 | 930 | 48.0 | 119 |
| 7 PzS-ET 1085 | 1085 | 55.6 | 137 |
| 8 PzS-ET 1240 | 1240 | 63.0 | 155 |
| 9 PzS-ET 1395 | 1395 | 70.2 | 173 |
| 10 PzS-ET 1550 | 1550 | 78.3 | 191 |
